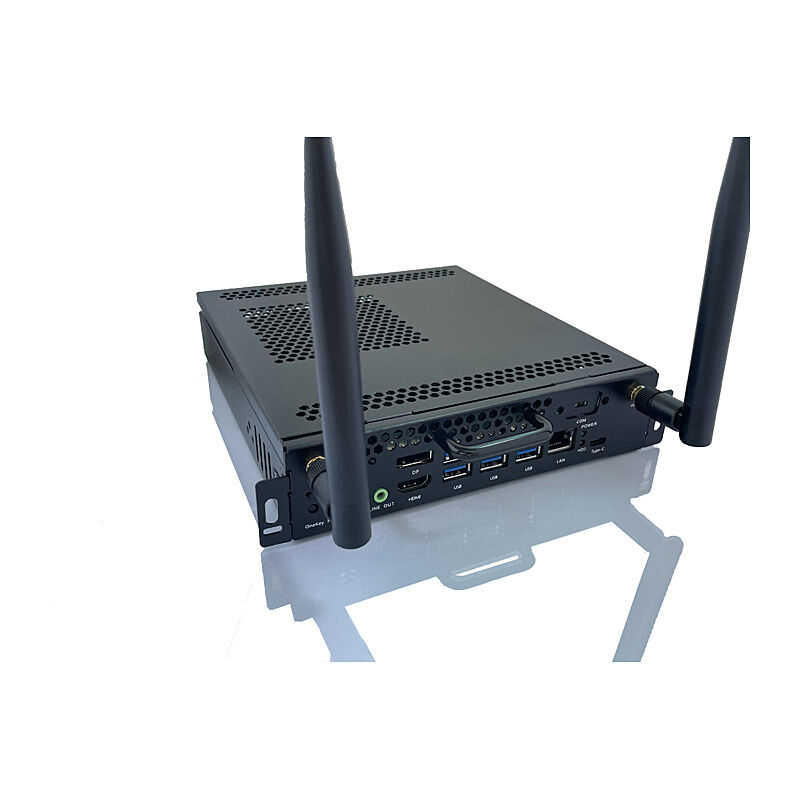

IQBOARD OPS Module i5 OPS-T

IQBOARD OPS Module i5 OPS-T

Unlicenced Windows 11 Pro pre-loaded (licence fees apply to end user)

Features

• CPU: Intel® Coreâ„¢ i5 10200H, Processor base frequency 2.4 GHz, 4 cores 8 threads, 8M cache
• RAM: 8 GB
• Storage: 512G SSD
• Graphics Card: Intel® Coreâ„¢ 630

Specifications

Output

• DP/HDMI dual display
• 1 × DP (Maximum supported resolution: 4096 × 2160 @ 60 Hz)
• 1 × HDMI (Maximum supported resolution: 4096 × 2160)

Network

• Network Card: 1 × RJ45 LAN, 1 × RTL8111 H 10/100/1000M
• WIFI: 1 × WIFI, support 802.11ac/a/b/g/n; BT4.2

I/O

• USB 3.0: 6 × USB 3.0 + 1 × Type C
• Power button: 1 × power button
• OPS: 1 × OPS (80 pin)
• Audio: 1 × LINE-OUT & MIC-IN
• LED Light: 1 × Power light & 1 × Harddisk light

Power Supply

• Input: 19 V / 4.74 A

Dimension

• Dimension: 180 mm (L) × 195 mm (W) × 42 mm (H)

Environment

• Temperature: Operating temperature: 0°C ∼ 50°C; Storage temperature: -20°C ∼ 70°C
• Humidity: 5%∼90% No condensation
